SUBSEA PRODUCTS / cameras

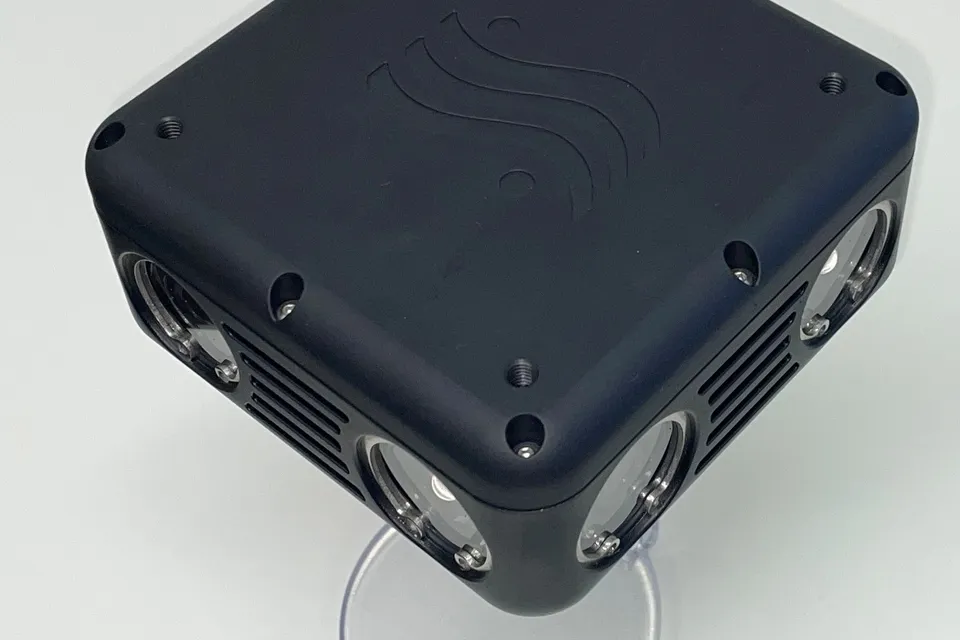

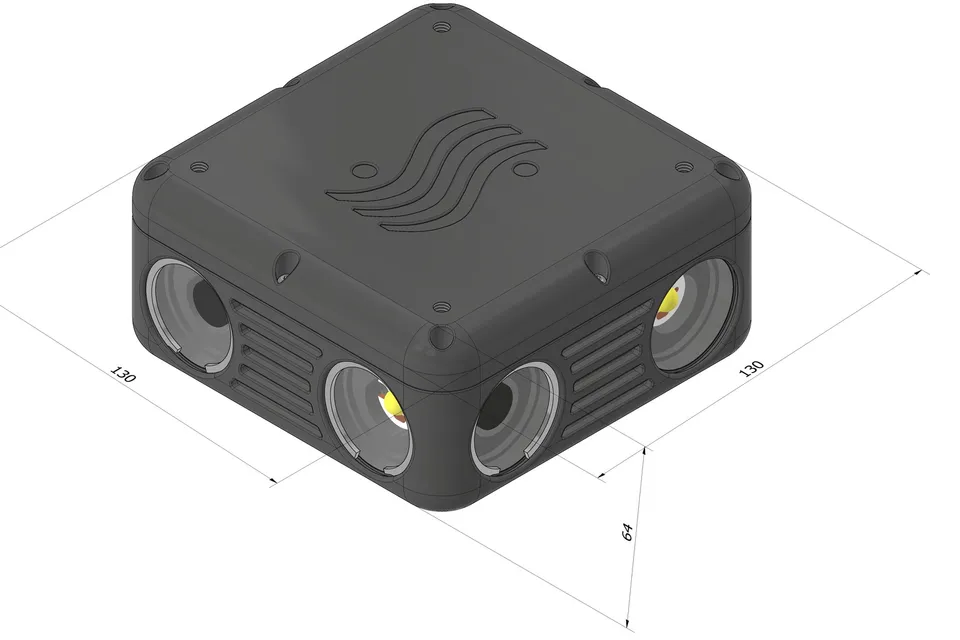

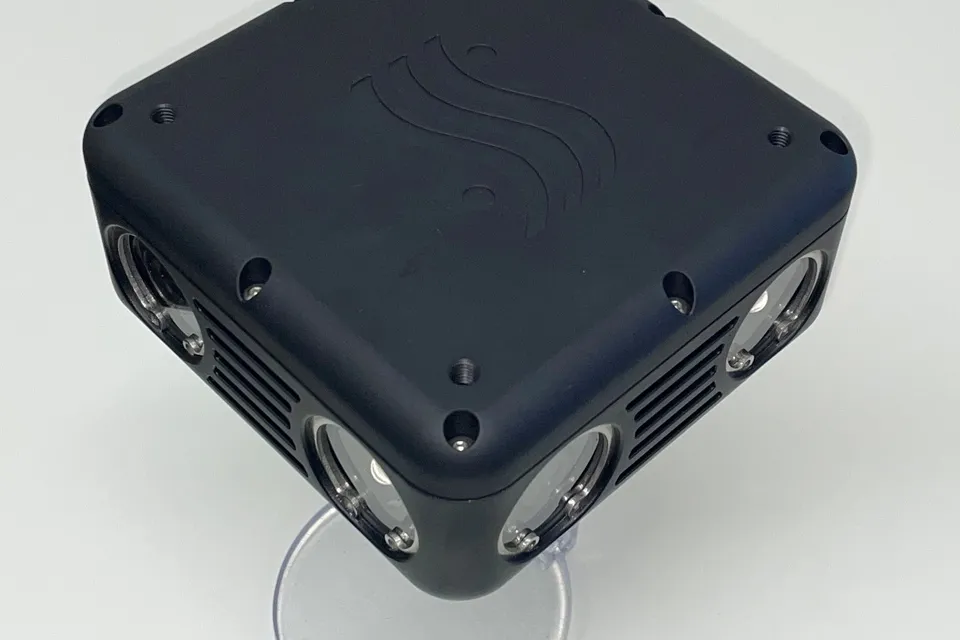

TRiOCam-IPQ
Four-camera subsea inspection system with integrated lights
The TRiOCam-IPQ is a four-camera subsea inspection system with integrated lights, designed to provide full directional coverage for underwater inspection and monitoring tasks.
- Lens
- 2.8 mm
- Horizontal angle of view
- 106 in air, 77 in water
- Vertical angle of view
- 56 in air, 41 in water
- Power
- 19-30 VDC @ 3.1 A max
THE TECHNICAL DETAILS
Specifications.
| Lens | 2.8 mm |
|---|---|
| Horizontal angle of view | 106 in air, 77 in water |
| Vertical angle of view | 56 in air, 41 in water |
| Power | 19-30 VDC @ 3.1 A max |
| Transmission protocols | H.264, H.265, ONVIF, RTSP |
| Resolutions | 720p; 1080p; 1269p; 1440p |
| Light sensitivity | 0.001 lx |
| Light output | 2000 lm in each direction |
| Light control | PWM, 0-5 V |
| Depth ratings | 4000 m; 6000 m |
