SUBSEA PRODUCTS / lasers
TRiOLas-S
High-performance subsea laser for measurement, alignment, and machine-vision tasks
The TRiOLas-S is a high-performance underwater laser designed for advanced industrial applications requiring precision and versatility. It supports diver and ROV operations, machine-vision alignment, subsea measurement systems, and parallel beam range estimation. Available in blue, green, and red wavelengths, the TRiOLas-S uses a sapphire front lens for durability in harsh underwater environments and delivers dependable optical performance during extended deployments.
- Supply
- 24 VDC, 160 mA
- Operating temperature
- -10 to +40 C
- Laser power output
- Blue 100 mW; Green 50 mW; Red 130 mW
- Wavelengths
- Blue 450 nm; Green 520 nm; Red 650 nm
THE TECHNICAL DETAILS
Specifications.
| Supply | 24 VDC, 160 mA |
|---|---|
| Operating temperature | -10 to +40 C |
| Laser power output | Blue 100 mW; Green 50 mW; Red 130 mW |
| Wavelengths | Blue 450 nm; Green 520 nm; Red 650 nm |
| Connector | MCBH2M or MCBHA2M, others on request |
| Available models | TRiOLas-S4000 and TRiOLas-S6000 |
| Depth ratings | 4000 m or 6000 m |

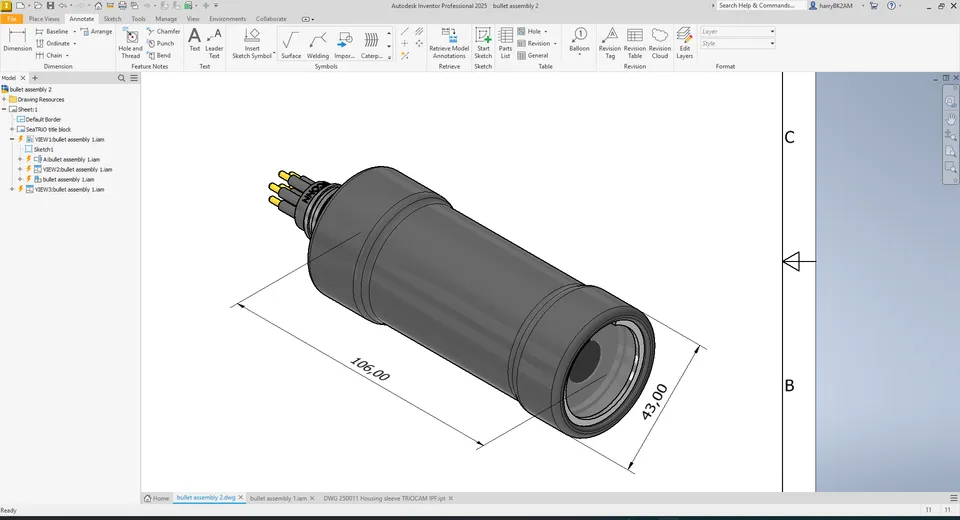

| Dimensions | 43 mm diameter; 106 mm length (S4000) or 112 mm length (S6000) |
| Weight | 340 g in air / 240 g in water (S4000); 460 g in air / 230 g in water (S6000) |
| Material | Anodised aluminium (S4000) or titanium (S6000) |
BUILT AROUND YOUR REQUIREMENTS
Let’s take your next project deeper.
A product question, a system challenge or a test requirement. Start a conversation with our engineers.
